What is Nuts Thread
Ball Screw Nut: A key component in high-precision linear transmission systems (used in CNC machines, industrial robots, aerospace devices). It converts rotational motion to linear motion with minimal friction. Common materials: Alloy steel (e.g., 40Cr, 38CrMoAl). Geometric complexity: Internal threads with variable spiral angles; strict requirements for thread profile accuracy & surface finish. Common risks: Poor thread precision → transmission errors; unstable cooling → thermal deformation; low efficiency → delayed orders.
Nuts Thread Grinding Core Pain Point
- Precision gap: Traditional grinders fail to meet ±0.001mm tolerance → 5-10% scrap rate
- Low efficiency: Manual spiral angle adjustment → 30% longer cycle time
- High maintenance: Unstable spindles → frequent breakdowns → 15% extra operational cost
- Environmental issues: Open grinding → oil mist pollution → compliance risks
Nuts Thread Grinding Process
Raw Material → Rough Grinding → Precision Grinding → Surface Treatment → Quality Inspection
- Rough Grinding: Remove excess material with high-speed (15000rpm spindle). Use Siemens 828D system for precise path control.
- Precision Grinding:
- Thread Profile: Automaticdressing via diamond roller (programmable for arc/triangle/trap sections)
- Spiral Angle: A-axis turntable adjusts ±30° automatically (locked for stability)
- Cooling: Center water outlet for workpiece cooling → reduce thermal deformation
- Surface Treatment: Polishing to Ra0.4μm (optional)
- Quality Inspection: Grating ruler feedback for real-time position monitoring; post-grinding dimensional testing.

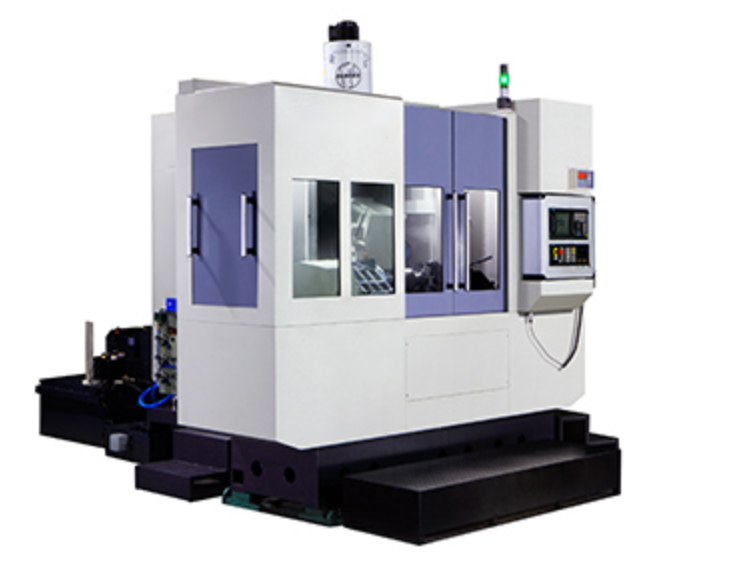

SMK1503A CNC Nuts Grinding Machine
SMK1503A CNC Nuts Grinding Machine is a high-precision internal thread grinder for nuts, ring gauges. It enables one-clamp full-process machining, grinds multi-start threads and various thread profiles with automatic spiral angle adjustment.
Nuts Thread Grinding Earnings Data
| Indicators | Value |
| Thread Tolerance | ±0.003mm |
| Surface Finish | Ra0.4μm |
| Cycle Time Reduction | 25% |
| Scrap Rate Reduction | 80% (from 5% to 1%) |
| Spindle Service Life | 5000+ hours |
| Maintenance Cost Reduction | 15% |
Contact us for further consultation on cooperation details or customized solutions. We look forward to partnering with you to create mutual value!
